Regulators

Set of RPM controllers is made for convenient fan speed adjustment in a PC unit or other device. Fan speed reduction reduces useless noise in a simple way. Primecooler offers internal and external solution in several models.

Download

Product sheet [228 kB]

PC-AFSC1

PC-AFSC1
Enlarge image

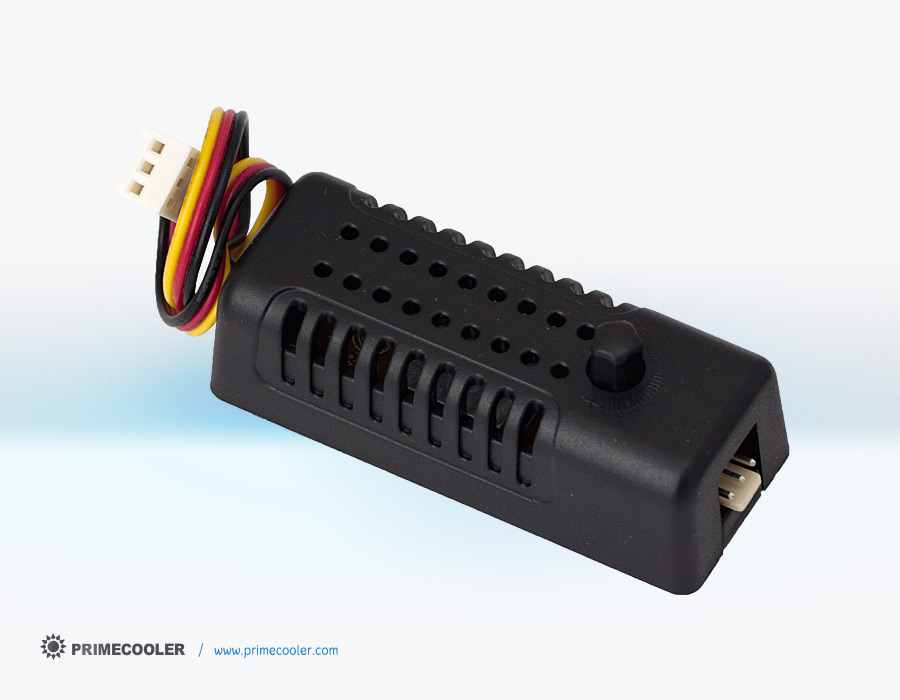

Adjust the power in the range between 5–12V and thus reduces the fan speed and noise. Equipped with 3 pin connector. Possible to combine with PRIMECOOLER PC-CC2 convertor, if 4 pin connector needed.

Input Voltage12V
Support Fansup to 2W
Dimension60 × 18 × 16 mm
ColorBlack
Shipping details135 pcs/carton
Shipping dimension29 × 43 × 21 cm/carton
Shipping weight4.5 kg/carton

PC-AFSC2

PC-AFSC2
Enlarge image

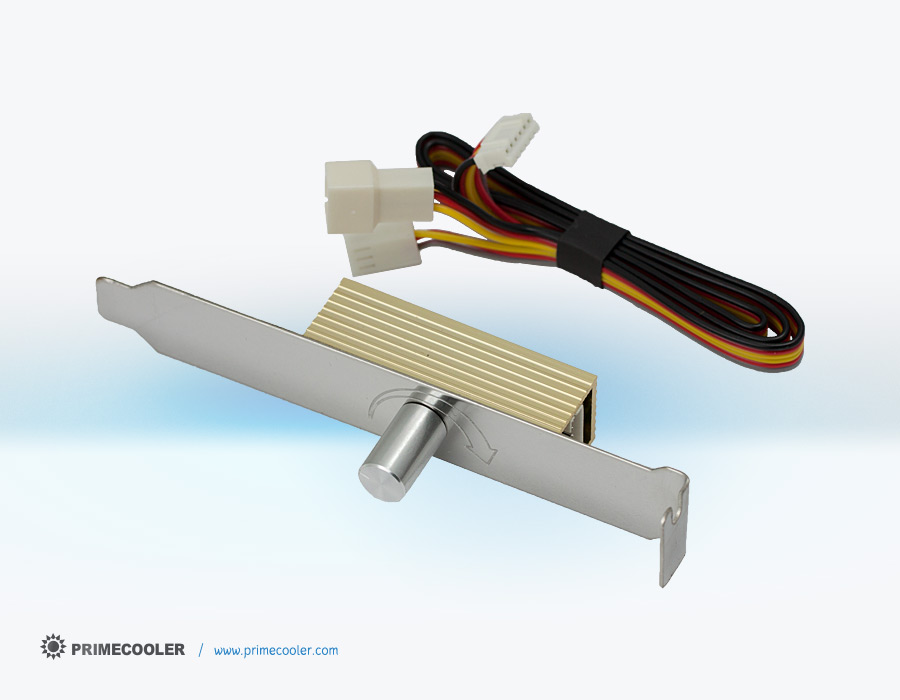

Universal RPM controller enables set up power in the range from 5 to 12V and in this way reduces or increases RPM and noise of the fan. For Installing to the back side of PC, instead of PCI device. Alarm function to signalize fan failure is built-in. Equipped with 3 pin connector.

Input Voltage12V
Support Fansup to 8W
Dimension120 × 21 × 35 mm
ColorSilver
Shipping details167 pcs/carton
Shipping dimension30 × 57 × 29 cm/carton
Shipping weight11.3 kg/carton

PC-AFSC3

PC-AFSC3
Enlarge image

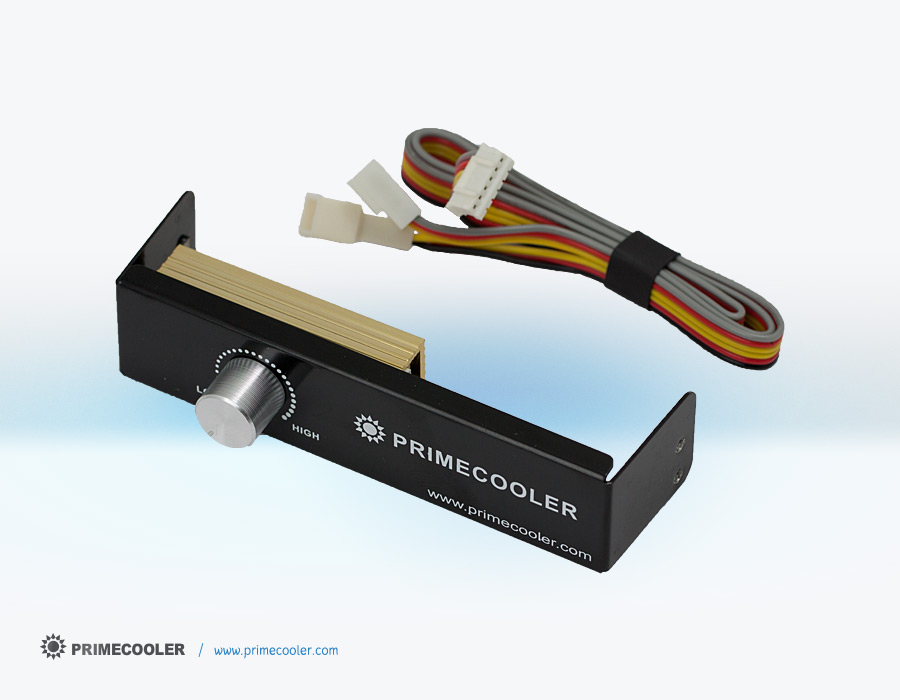

Externally accessible RPM controller for of your fan enables simply set up power in the range from 5 to 12V and in this way reduces or increases RPM and noise of the fan. For Installing to 3.5" bay of your PC. Built-in alarm signalizes fan failure. Equipped with 3 pin connector.

Input Voltage12V
Support Fansup to 8W
Dimension101 × 16 × 35 mm
ColorBlack or Silver
Shipping details200 pcs/carton
Shipping dimension47 × 36 × 33.5 cm/carton
Shipping weight11.5 kg/carton
